3-5kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported

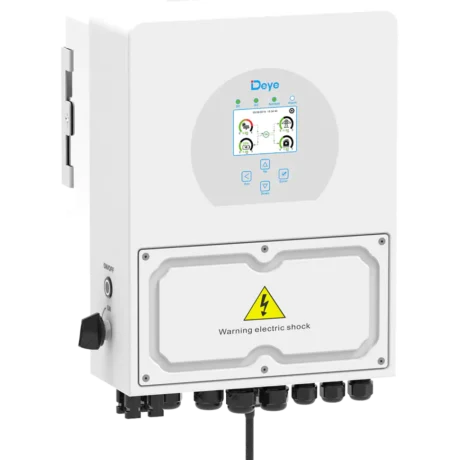

SUN-3/3.6/5K-SG04LP1-EU, hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3/6K-SG04. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It is equipped with RS485/CAN port for battery communication.
| model | SUN-3K-SG04LP1-24-EU | SUN-3K-SG04LP1-EU | SUN-3.6K-SG04LP1-EU | SUN-5K-SG04LP1-EU |
| Battery Input Data | ||||
| Battery Type | Lead-acid or Lithium-ion | Lead-acid or Lithium-ion | Lead-acid or Lithium-ion | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 20~30 | 40~60 | 40~60 | 40~60 |
| Max. Charging Current (A) | 140 | 70 | 90 | 120 |
| Max. Discharging Current (A) | 140 | 70 | 90 | 120 |
| Charging Curve | 3 Stages / Equalization | 3 Stages / Equalization | 3 Stages / Equalization | 3 Stages / Equalization |
| External Temperature Sensor | Yes | Yes | Yes | Yes |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | Self-adaption to BMS | Self-adaption to BMS | Self-adaption to BMS |
| PV String Input Data | ||||
| Max. DC Input Power (W) | 3900 | 3900 | 4680 | 6500 |
| Rated DC Input Voltage (V) | 370(125~500) | 370(125~500) | 370(125~500) | 370(125~500) |
| Start-up Voltage (V) | 125 | 125 | 125 | 125 |
| MPPT Range (V) | 150~425 | 150~425 | 150~425 | 150~425 |
| Full Load DC Voltage Range (V) | 300~425 | 300~425 | 300~425 | 300~425 |
| PV Input Current (A) | 13 | 13 | 13+13 | 13+13 |
| Max. PV ISC (A) | 17 | 17 | 17+17 | 17+17 |
| No. of MPP Trackers | 1 | 1 | 2 | 2 |
| No. of Strings per MPP Tracker | 1 | 1 | 1+1 | 1+1 |
| AC Output Data | ||||
| Rated AC Output and UPS Power (W) | 3000 | 3000 | 3600 | 5000 |
| Max. AC Output Active Power (W) | 3300 | 3300 | 3690 | 5500 |
| AC Output Rated Current (A) | 13.6/13 | 13.6/13 | 16.4/15.7 | 22.7/21.7 |
| Max. AC Output Current (A) | 15/14.3 | 15/14.3 | 18/17.2 | 25/23.9 |
| Max. Continuous AC Passthrough (A) | 35 | 35 | 35 | 35 |
| Peak Power (off grid) | 2 time of rated power, 10 S | 2 time of rated power, 10 S | 2 time of rated power, 10 S | 2 time of rated power, 10 S |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range(V) | 220/230 Vac (Single phase) | 220/230 Vac (Single phase) | 220/230 Vac (Single phase) | 220/230 Vac (Single phase) |
| Rated Input/Output Grid Frequency/Range | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Grid Connection Form | L/`N/PE | L/N/PE | L/N/PE | L/N/PE |
| Total Harmonics Current Distortion (THDi) | <3% (of nominal power) | <3% (of nominal power) | <3% (of nominal power) | <3% (of nominal power) |
| DC Current Injection | <0.5% In | <0.5% In | <0.5% In | <0.5% In |
| Efficiency | ||||
| Max.Efficiency | 97.60% | 97.60% | 97.60% | 97.60% |
| Euro Efficiency | 96.50% | 96.50% | 96.50% | 96.50% |
| MPPT Efficiency | 99.90% | 99.90% | 99.90% | 99.90% |
| Protection | ||||
| Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection |
| Over Voltage Category | DC Type II / AC Type Ⅲ | DC Type II / AC Type Ⅲ | DC Type II / AC Type Ⅲ | DC Type II / AC Type Ⅲ |
| Certifications and Standards | ||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| General Data | ||||
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating | -40 to +60℃, >45℃ Derating | -40 to +60℃, >45℃ Derating | -40 to +60℃, >45℃ Derating |
| Cooling | Free Cooling | Free Cooling | Free Cooling | Smart Cooling |
| Noise (dB) | ≤30 dB | ≤30 dB | ≤30 dB | ≤30 dB |
| Communication with BMS | RS485; CAN | RS485; CAN | RS485; CAN | RS485; CAN |
| Weight (kg) | 14 | 14 | 14 | 15.1 |
| Cabinet Size (WxHxD mm) | 330×433×238 (Excluding Connectors and Brackets) | 330×433×238 (Excluding Connectors and Brackets) | 330×433×238 (Excluding Connectors and Brackets) | 330×433×238 (Excluding Connectors and Brackets) |
| Protection Degree | IP65 | IP65 | IP65 | IP65 |
| Installation Style | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
